Map Badge Card for Home Assistant

A custom card that shows person locations on a map with profile pictures and activity badges.

Features

• OpenStreetMap (free) or Google Maps
• Profile pictures as map markers with colored borders based on zones
• Activity badges (walking, driving, etc.) from your phone's sensors
• Customizable colors and border styles
• Adjustable Marker Sizes (Small, Medium, Large)
• Speed Display in Popups
• Speed-based Activity Prediction

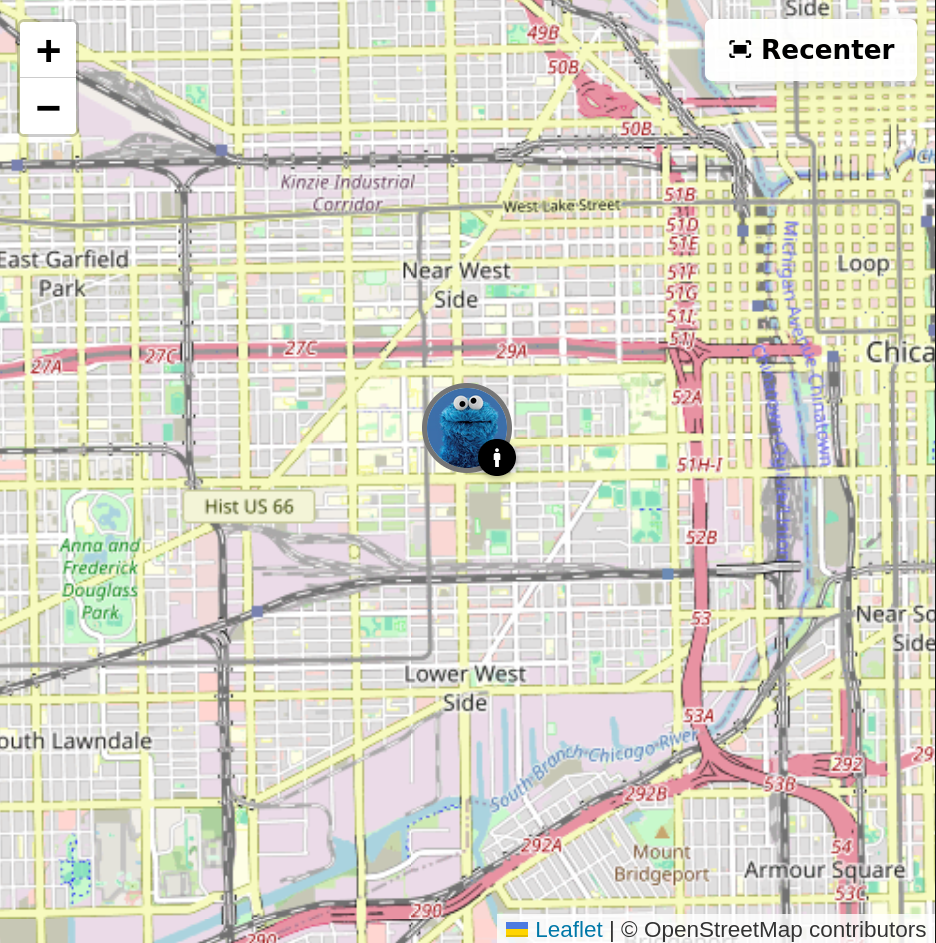

Zone-based Markers

Markers show colored borders based on zones (home = green, away = gray, etc.)

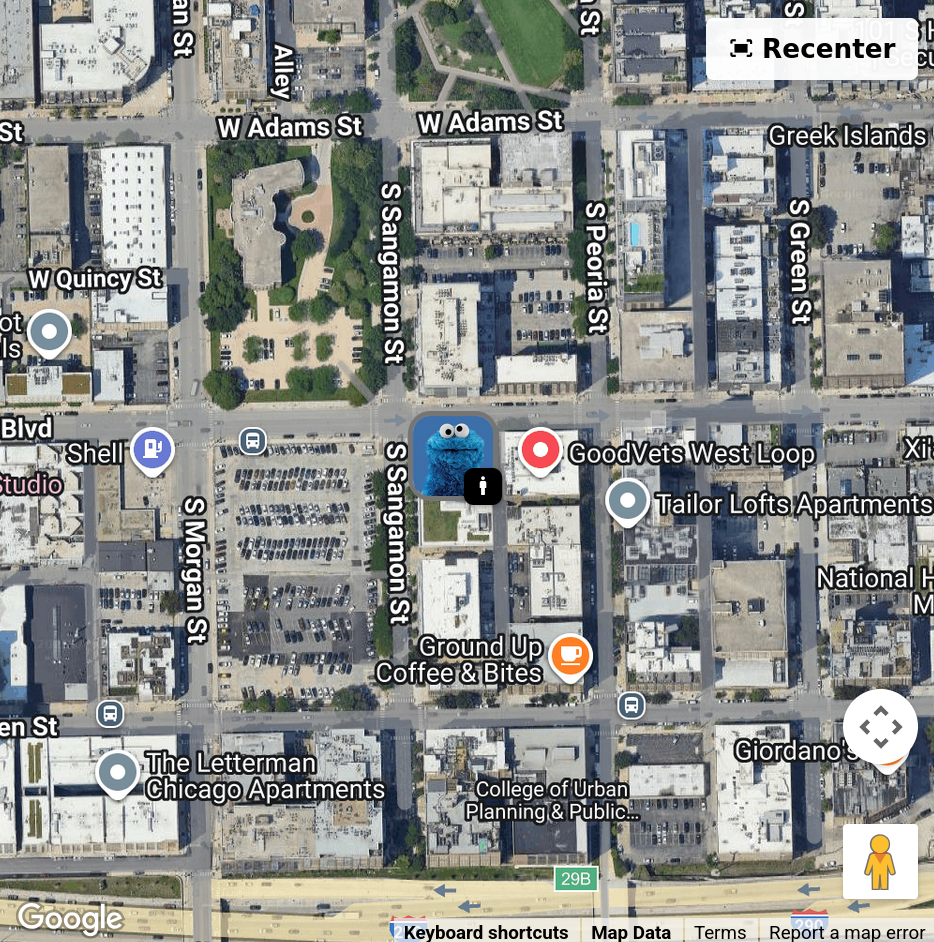

Google Maps Support

Standard view	3D tilt at high zoom

Installation

HACS (Recommended)

Coming soon

Manual Installation

1. Download all required files from the src/ directory:

   • map-badge-card.js (main entry point)
   • constants.js
   • config-manager.js
   • entity-data-fetcher.js
   • iframe-messenger.js
   • editor-ui.js
   • editor-handlers.js
   • map-badge-v2.html

2. Create a folder /config/www/map-badge-card/

3. Copy all 8 files into that folder

4. Add the card resource:

   • Go to Settings → Dashboards → Resources
   • Click "Add Resource"
   • URL: /local/map-badge-card/map-badge-card.js
   • Resource type: JavaScript Module (important!)

5. Refresh your browser

Note: The card uses ES6 modules, so all files must be in the same directory and the resource type must be set to "JavaScript Module".

Configuration

Basic Configuration

type: custom:map-badge-card
entities:
  - person: person.john
    activity: sensor.john_phone_activity
  - person: person.jane
    activity: sensor.jane_phone_activity
map_provider: osm  # or 'google'
default_zoom: 13
update_interval: 10  # seconds

Full Configuration Example

type: custom:map-badge-card
entities:
  - person: person.john
    activity: sensor.john_phone_activity
  - person: person.jane
    activity: sensor.jane_phone_activity
map_provider: google
google_api_key: YOUR_GOOGLE_API_KEY
map_type: hybrid  # hybrid, satellite, roadmap, or terrain
default_zoom: 15
update_interval: 10
marker_size: medium  # small, medium, large
marker_border_radius: 50%  # 50% for circles, or use px (e.g., 8px)
badge_border_radius: 50%
debug: false
zones:
  home:
    color: '#cef595'
  not_home:
    color: '#757575'
  work:
    color: '#4285f4'
activities:
  still:
    color: '#000000'
  walking:
    color: '#4caf50'
  running:
    color: '#ff5722'
  on_bicycle:
    color: '#2196f3'
  in_vehicle:
    color: '#9c27b0'
activity_source: sensor  # sensor or speed_predicted

Configuration Options

Option	Type	Default	Description
entities	list	Required	List of person entities with optional activity sensors
map_provider	string	osm	Map provider: osm (OpenStreetMap) or google
google_api_key	string	-	Google Maps API key (required only for Google Maps)
map_type	string	hybrid	Google Maps type: hybrid, satellite, roadmap, or terrain
default_zoom	number	13	Initial map zoom level (1-21)
update_interval	number	10	Update interval in seconds
marker_size	string	medium	Marker size: small, medium, or large
marker_border_radius	string	50%	Border radius for profile pictures
badge_border_radius	string	50%	Border radius for activity badges
debug	boolean	false	Enable debug mode for troubleshooting
zones	object	See below	Custom zone configurations
activities	object	See below	Custom activity color configurations
activity_source	string	sensor	Activity source: sensor or speed_predicted

Supported Activities

Based on Google and iOS activity detection APIs. Icon colors are customizable.

• Still, On Foot, Walking, Running, Cycling
• In Vehicle (covers car, automotive, etc.)
• On Train, On Bus
• Tilting

All default to black background with white icons.

Requirements

Your person entities need GPS coordinates (latitude/longitude). Activity sensors come from the Home Assistant Companion App or similar integrations.

For Google Maps, you'll need an API key from Google Cloud Console with billing enabled. OpenStreetMap works out of the box.

Notes

Speed Prediction Feature

The speed-based activity prediction feature requires GPS position history and works best with frequent updates. The card calculates speed based on position changes over time, so:

• Speed display will appear after at least 2 position updates
• Prediction accuracy improves with more frequent GPS updates (e.g., every 10-30 seconds)
• Activity prediction uses the following thresholds:
  • Still: < 1 km/h
  • Walking: 1-7 km/h
  • On Bicycle: 7-25 km/h
  • In Vehicle: > 25 km/h

The speed calculation is performed locally in your browser and uses a Haversine formula for distance calculation between GPS coordinates.
