Map Badge Card for Home Assistant

A custom card that shows person locations on a map with profile pictures and activity badges.

Features

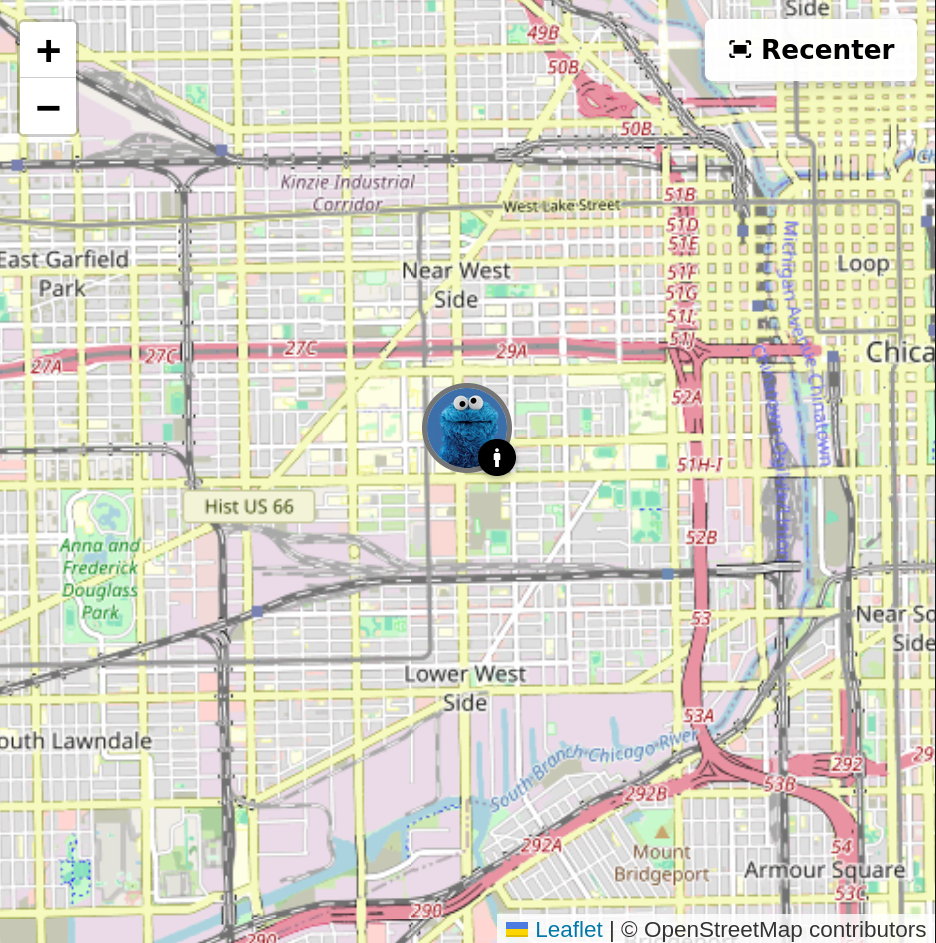

• OpenStreetMap (free) or Google Maps
• Profile pictures as map markers with colored borders based on zones
• Activity badges (walking, driving, etc.) from your phone's sensors
• Customizable colors and border styles

Zone-based Markers

Markers show colored borders based on zones (home = green, away = gray, etc.)

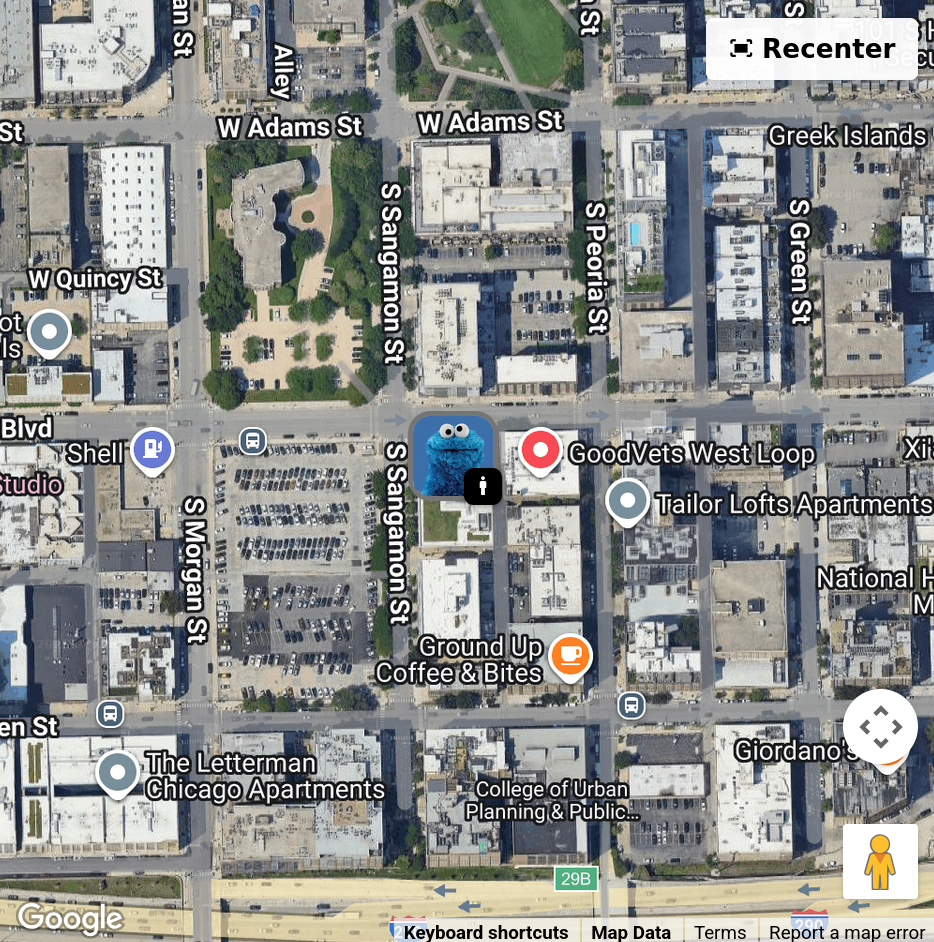

Google Maps Support

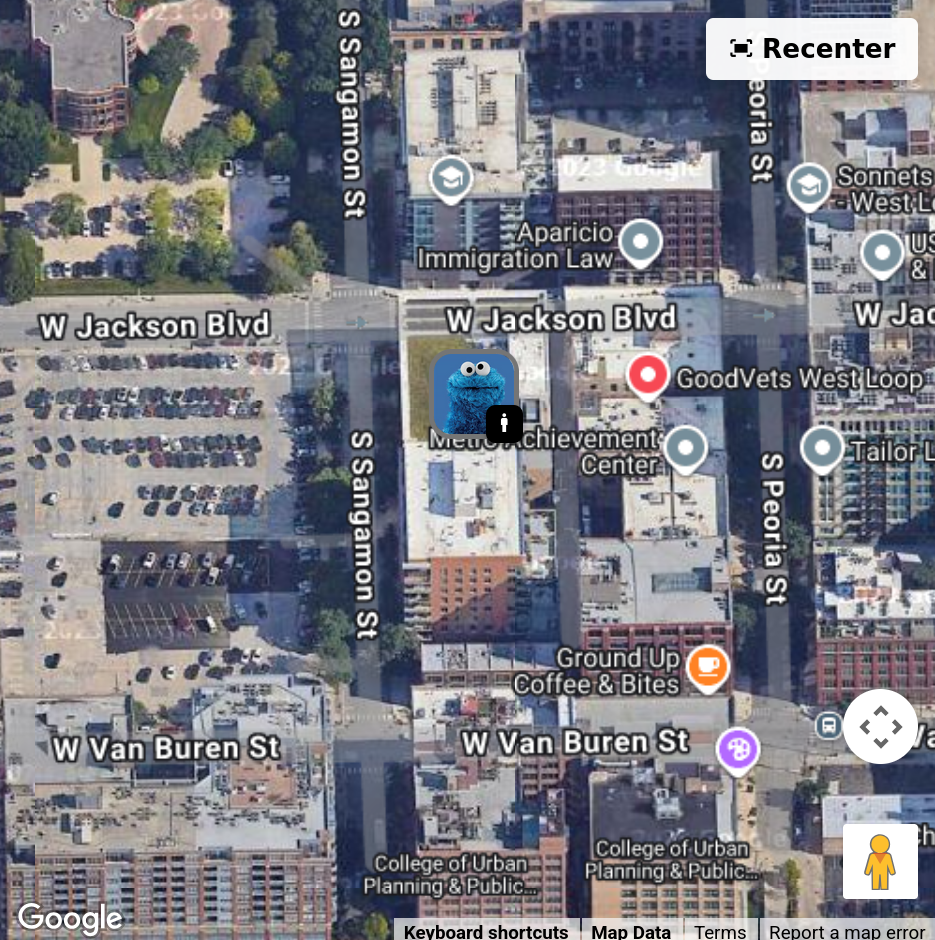

Standard view	3D tilt at high zoom

Installation

HACS (Recommended)

Coming soon

Manual Installation

1. Download map-badge-card.js and map-badge-v2.html
2. Create a folder /config/www/map-badge-card/
3. Copy both files into that folder
4. Add the card resource:
   • Go to Settings → Dashboards → Resources
   • Click "Add Resource"
   • URL: /local/map-badge-card/map-badge-card.js
   • Resource type: JavaScript Module
5. Refresh your browser

Configuration

Basic Configuration

type: custom:map-badge-card
entities:
  - person: person.john
    activity: sensor.john_phone_activity
  - person: person.jane
    activity: sensor.jane_phone_activity
map_provider: osm  # or 'google'
default_zoom: 13
update_interval: 10  # seconds

Full Configuration Example

type: custom:map-badge-card
entities:
  - person: person.john
    activity: sensor.john_phone_activity
  - person: person.jane
    activity: sensor.jane_phone_activity
map_provider: google
google_api_key: YOUR_GOOGLE_API_KEY
map_type: hybrid  # hybrid, satellite, roadmap, or terrain
default_zoom: 15
update_interval: 10
marker_border_radius: 50%  # 50% for circles, or use px (e.g., 8px)
badge_border_radius: 50%
debug: false
zones:
  home:
    color: '#cef595'
  not_home:
    color: '#757575'
  work:
    color: '#4285f4'
activities:
  still:
    color: '#000000'
  walking:
    color: '#4caf50'
  running:
    color: '#ff5722'
  on_bicycle:
    color: '#2196f3'
  in_vehicle:
    color: '#9c27b0'

Configuration Options

Option	Type	Default	Description
entities	list	Required	List of person entities with optional activity sensors
map_provider	string	osm	Map provider: osm (OpenStreetMap) or google
google_api_key	string	-	Google Maps API key (required only for Google Maps)
map_type	string	hybrid	Google Maps type: hybrid, satellite, roadmap, or terrain
default_zoom	number	13	Initial map zoom level (1-21)
update_interval	number	10	Update interval in seconds
marker_border_radius	string	50%	Border radius for profile pictures
badge_border_radius	string	50%	Border radius for activity badges
debug	boolean	false	Enable debug mode for troubleshooting
zones	object	See below	Custom zone configurations
activities	object	See below	Custom activity color configurations

Supported Activities

Based on Google and iOS activity detection APIs. Icons are fixed, you can only change colors.

• Still, On Foot, Walking, Running, Cycling
• In Vehicle (covers car, automotive, etc.)
• On Train, On Bus
• Tilting

All default to black background with white icons.

Requirements

Your person entities need GPS coordinates (latitude/longitude) and profile pictures. Activity sensors come from the Home Assistant Companion App or similar integrations.

For Google Maps, you'll need an API key from Google Cloud Console with billing enabled. OpenStreetMap works out of the box.
